RF connectors explained: types, uses, and performance

Radio Frequency (RF) connectors play a crucial role in modern telecommunications and electronic systems. These specialized connectors enable the transmission of high-frequency signals between components, ensuring optimal performance in a wide range of applications. From wireless communication devices to broadcasting equipment, RF connectors are the unsung heroes that keep our interconnected world running smoothly. For more information on various connector types and their applications, you may want to explore our comprehensive guide on electrical connector types. This resource provides valuable insights into the broader world of electronic connectors, including RF and other specialized types.

Common RF connector types for different applications

RF connectors come in various shapes and sizes, each designed to meet specific requirements. The choice of connector depends on factors such as frequency range, power handling capacity, and environmental conditions. Let's examine some of the most widely used RF connector types and their typical applications.

SMA connectors for wireless communication systems

SubMiniature version A (SMA) connectors are among the most popular RF connector types, especially in wireless communication systems. These compact connectors offer excellent performance up to 18 GHz, making them ideal for a wide range of applications. SMA connectors feature a threaded coupling mechanism that ensures a secure connection, even in high-vibration environments.

BNC connectors in video broadcasting equipment

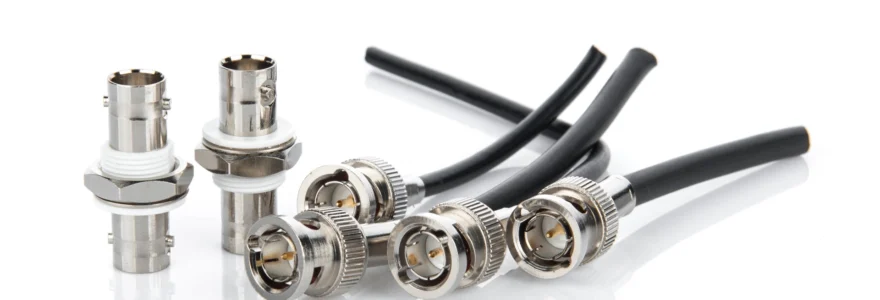

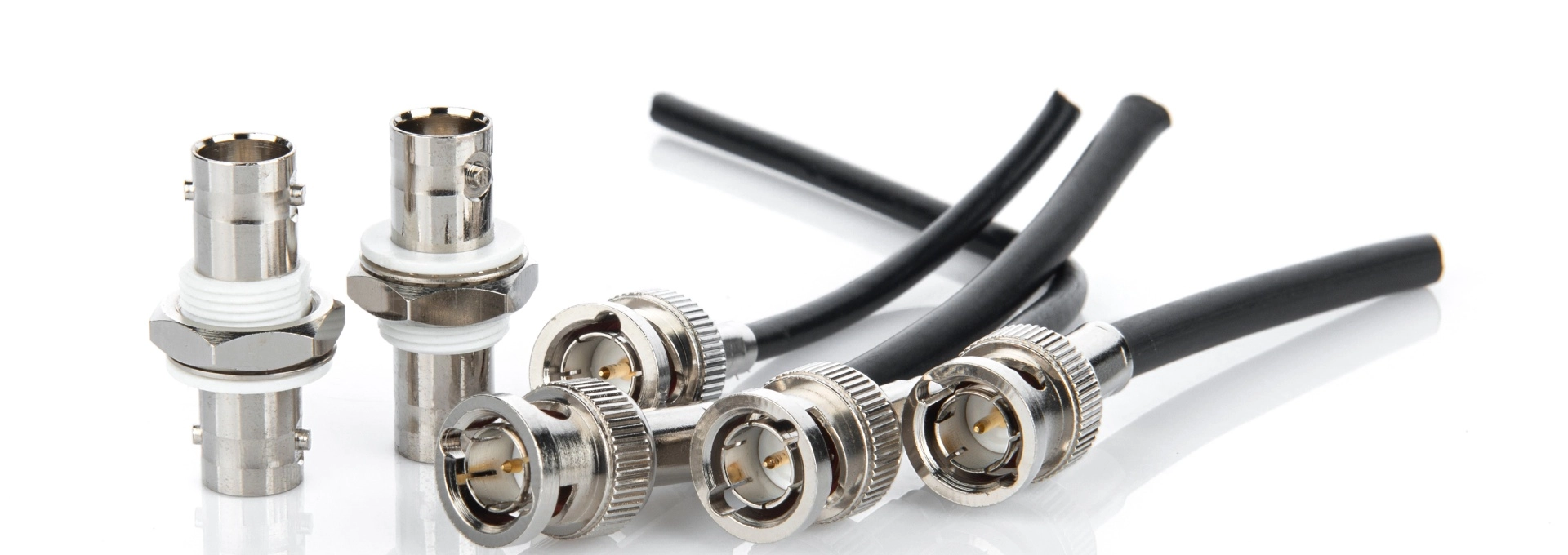

Bayonet Neill-Concelman (BNC) connectors have been a staple in the broadcasting industry for decades. These quick-connect/disconnect connectors are known for their ease of use and reliable performance in the 0-4 GHz frequency range. BNC connectors use a bayonet-style locking mechanism that allows for rapid connection and disconnection, making them ideal for environments where frequent changes are necessary.

N-type connectors for high-power RF transmission

When it comes to applications requiring high power handling capabilities, N-type connectors are often the preferred choice. These robust connectors can handle frequencies up to 11 GHz and are designed to withstand significant power levels. N-type connectors feature a threaded coupling mechanism that provides a secure, weatherproof seal, making them suitable for both indoor and outdoor use.

Factors influencing RF connector performance

The performance of RF connectors is influenced by several key factors that determine their suitability for specific applications. Understanding these factors is crucial for selecting the right connector and ensuring optimal system performance. Let's explore the most critical aspects that affect RF connector performance.

Impedance matching for optimal signal transfer

Impedance matching is a fundamental concept in RF design, and it's particularly important when it comes to connectors. The impedance of the connector must match that of the cable and the connected devices to minimize signal reflection and maximize power transfer. Most RF systems operate at either 50 ohms or 75 ohms impedance.

Frequency range supported by connector design

Different RF connector types are designed to operate effectively within specific frequency ranges. The physical dimensions and materials used in the connector construction determine its frequency response. As frequencies increase, factors such as skin effect and dielectric losses become more pronounced, affecting the connector's performance.

Power handling capabilities of different types

The power handling capability of an RF connector is a critical factor, especially in high-power transmission systems. This characteristic determines the maximum amount of RF power that can be safely transmitted through the connector without causing damage or signal degradation.

RF connector materials impact durability reliability

The materials used in RF connector construction play a significant role in determining their durability, reliability, and overall performance. Different materials offer varying levels of conductivity, corrosion resistance, and mechanical strength. Let's explore some common materials used in RF connectors and their impact on connector performance.

Brass connectors offer cost-effective robust solution

Brass is a popular material for RF connectors due to its excellent balance of performance and cost-effectiveness. This alloy of copper and zinc offers good electrical conductivity and corrosion resistance, making it suitable for a wide range of applications. Brass connectors are often used in less demanding environments where extreme durability is not required.

Stainless steel withstands harsh environmental conditions

For applications that require superior durability and resistance to harsh environments, stainless steel connectors are often the preferred choice. Stainless steel offers excellent corrosion resistance, high mechanical strength, and good temperature stability. These properties make stainless steel connectors ideal for outdoor installations, marine environments, and industrial applications.

Gold plating improves conductivity corrosion resistance

Gold plating is a common technique used to enhance the performance and reliability of RF connectors. A thin layer of gold applied to the connector's conductive surfaces provides excellent electrical conductivity and superior corrosion resistance. Gold-plated connectors are particularly valuable in applications where signal integrity is critical or where the connectors may be exposed to corrosive environments.

Proper RF connector installation techniques

Proper installation of RF connectors is crucial for ensuring optimal performance and reliability in your RF system. Even the highest quality connector can fail if not installed correctly. Let's explore some essential techniques and best practices for RF connector installation.

First and foremost, cleanliness is paramount when working with RF connectors. Any contamination, such as dirt, dust, or oil, can significantly impact the connector's performance. Always work in a clean environment and use appropriate cleaning agents to prepare the connector and cable before installation.

When attaching a connector to a coaxial cable, pay close attention to the following:

  1. Cable preparation: Carefully strip the cable, ensuring the correct dimensions for the specific connector type.
  2. Center conductor alignment: Ensure the center conductor is straight and properly aligned with the connector's center pin.
  3. Proper crimping or soldering: Use the correct tools and techniques to secure the connector to the cable.
  4. Weatherproofing: For outdoor installations, apply appropriate weatherproofing measures to protect the connection from moisture and environmental factors.

It's also crucial to use the correct torque when tightening threaded connectors. Over-tightening can damage the connector or the mating surface, while under-tightening may result in poor electrical contact or allow moisture ingress. Always refer to the manufacturer's specifications for the recommended torque values.

Remember that different connector types may require specific installation tools or techniques. Investing in high-quality installation tools and proper training for technicians can significantly improve the reliability and performance of your RF connections.

Troubleshooting common RF connector issues

Even with proper installation and maintenance, RF connectors can sometimes experience issues that affect system performance. Being able to identify and troubleshoot these problems quickly is essential for maintaining reliable RF systems. Let's explore some common issues and their potential solutions.

One of the most frequent problems encountered with RF connectors is signal loss or degradation. This can be caused by several factors, including:

  • Loose connections
  • Corroded or damaged connector surfaces
  • Misaligned or bent center conductors
  • Moisture ingress in outdoor installations

To troubleshoot these issues, start by visually inspecting the connector for any obvious signs of damage or corrosion. Check that the connection is secure and properly tightened. If the problem persists, use a multimeter to check for continuity and proper resistance values.

By understanding common RF connector issues and their solutions, you can maintain the performance and reliability of your RF systems more effectively. Regular inspection and maintenance of connectors can help prevent many problems before they impact system operation.

As technology continues to evolve, so do the requirements for RF connectors. Staying informed about the latest developments in connector design and materials is crucial for professionals working with RF systems. By understanding the types, performance factors, and proper installation techniques of RF connectors, you can ensure that your systems operate at peak efficiency and reliability.
